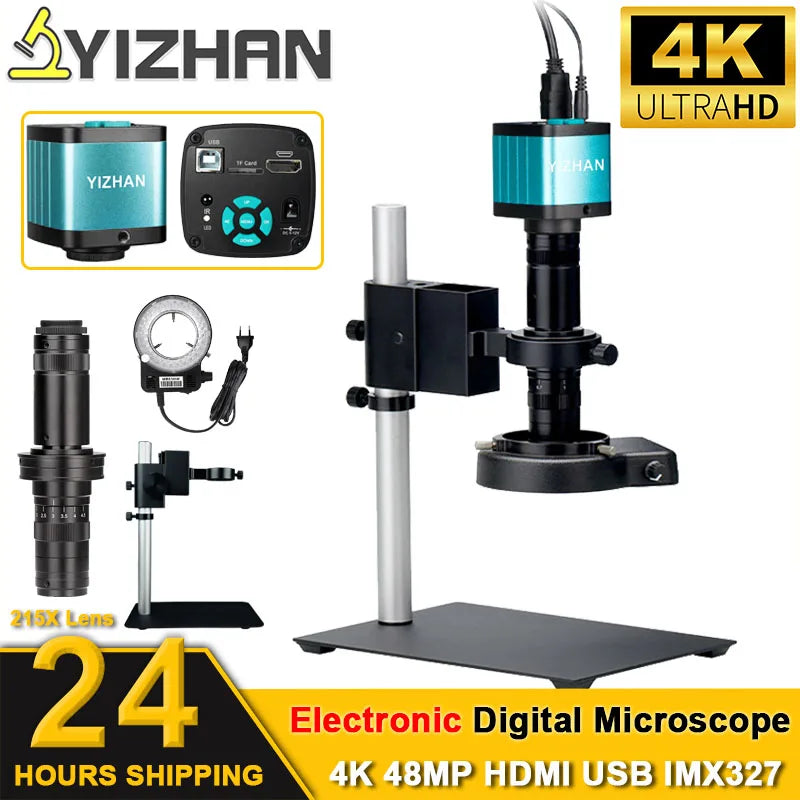

130X 150X 180X 215X C-Mount Zoom Lens Electronic Digital Microscope 4K 48MP HD Video Recording Industrial Cameras Repair Tools
Picture |
|||||
Model |
130X |
150X-40mm |
150X-A50 |
180X |
215X |
Installation Diameter |
40mm |
40mm |
50mm |
50mm |
50mm |
Working Distance |
40mm-220mm |
50mm-1000mm |
50mm-300mm |
100mm-150mm |
50mm-150mm |
Magnification |
0.1-1.3X (approximately 1-130X on the display) |
0.15-2X (approximately 1-150X on the display) |
0.7-0.45X (approximately 1-150X on the display) |
0.7-0.45X (approximately 1-180X on the display) |
0.7-0.45X (approximately 1-215X on the display) |
MAX Magnification Field of View |
8mm*4.5mm |
4.2mm*2.4mm |
3.5mm*2mm |
2.8mm*1.5mm |
2.5mm*1.5mm |
MIN Magnification Field of View |
40mm*33mm |
130mm*70mm |
75mm*4.2mm |
25mm*14mm |
21mm*12mm |
Size |
115*40mm |
99*40mm |
122*50mm |
168*50mm |
155*50mm |
weight |
210g |
120g |
310g |
570g |
350g |
4K 48MP HDMI USB Camera Description:
◆Adopt 2 million pixel imported Sony CMOS image sensor;
◆Adopt 1/2.8 inch image sensor, with a wider viewing angle than 1/3 inch;
◆HDMI 1080P 60 frame image output;
◆USB2.0 driver-free output 1080P 30 frames of image output;
◆4K video recording;
◆Maximum 4800MP photo taking, JPG format, photo size 4608x3456;
◆One-button freeze/thaw function;
◆Electronic zoom function;
◆Support manual/automatic exposure, exposure compensation value adjustment;
◆Support manual/automatic white balance, red, green, blue adjustable;
◆Provide 8-line drawing function, line color, thickness, position adjustable;
◆Provide center crosshair display/off;
◆Support TF card storage, maximum support 64GB;
◆Support remote control operation, no shaking when taking photos, clearer images;
◆Support Chinese and English menu languages (default English);
◆Support shutdown setting parameter saving;
◆Sturdy metal shell;

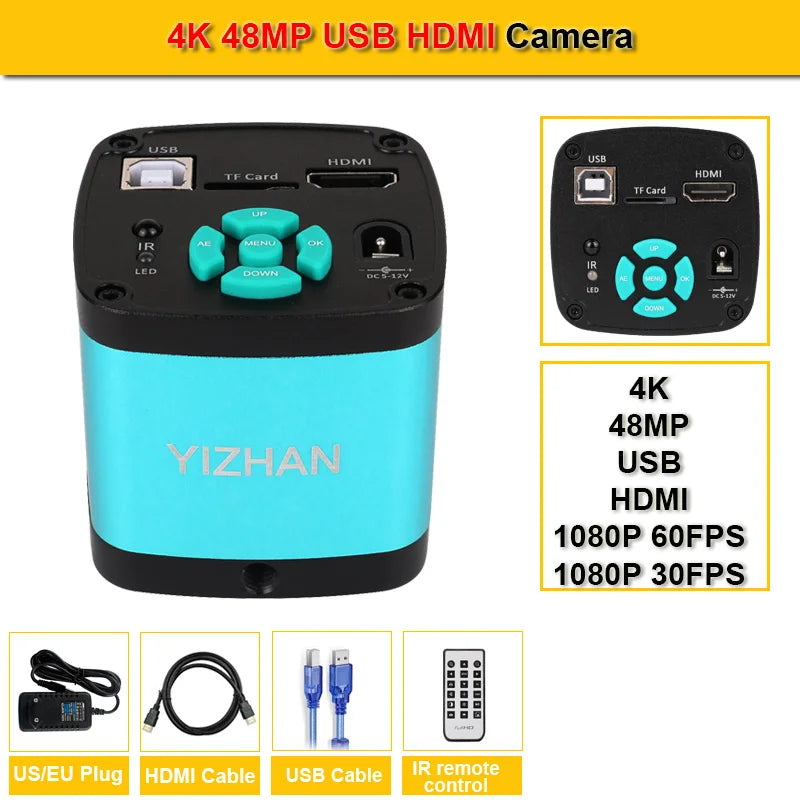

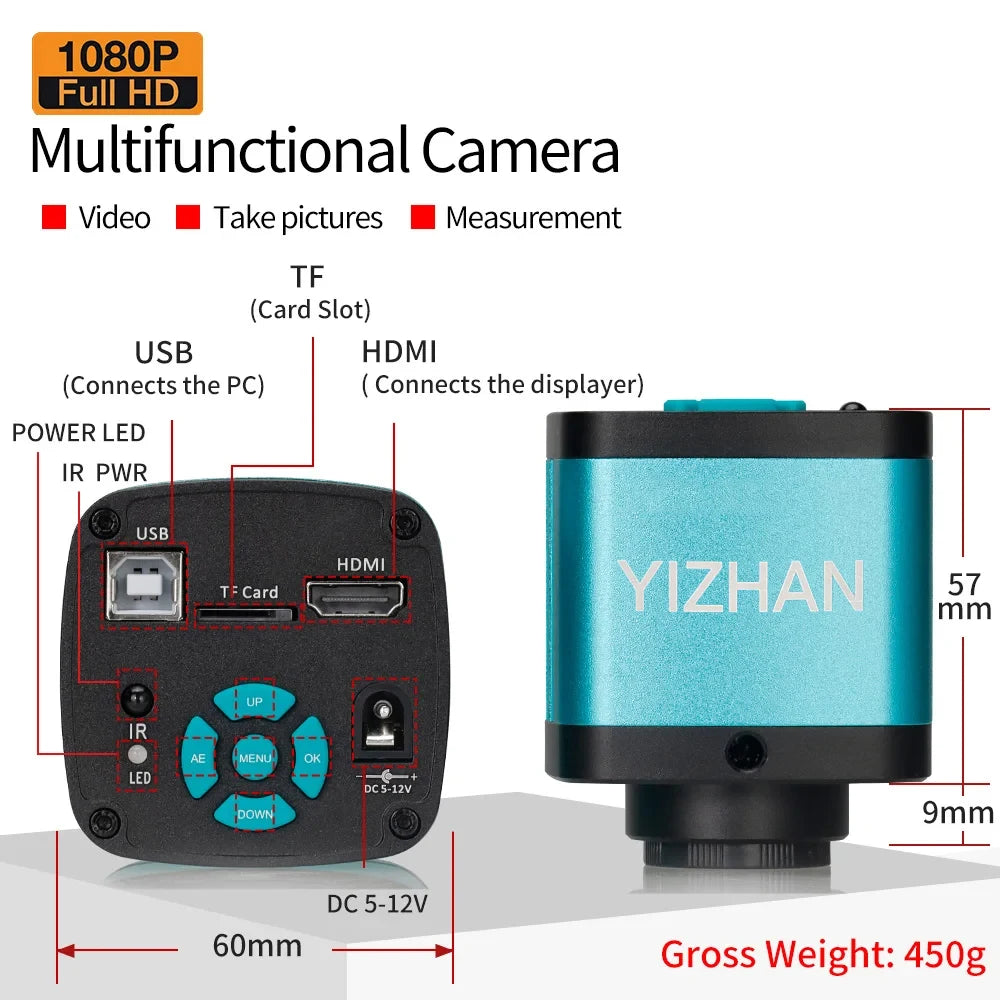

4K 48MP HDMI USB Camera Specifications:
Sensor: 1/2.8-inch imported Sony CMOS image sensor
Size: 2.9µm × 2.9µm
HDMI output: 1920*1080 60FPS
USB Output: 1920*1080/30, 1280*720/30, 640*480/30, 320* 240/30 (MJPG)
Camera interface: C/CS
Exposure: Auto/Manual
Exposure compensation: Support
White balance: Auto/Manual, RGB adjustable
Storage: Maximum support 64GB
Input voltage: DC 5V-12V
Line: Support 8 straight lines with adjustable color, thickness and position
Center line: Support
Menu language: English/Chinese
Remote control: Support remote control operation
Model: XHU4002
Color: Blue
Net weight: 250g
Gross weight: 450g
Product size: 60*60*70mm
Packaging size: 145*130*70mm
Output interface: HDMI USB
Resolution: 1920*1080P
Remote control: Yes

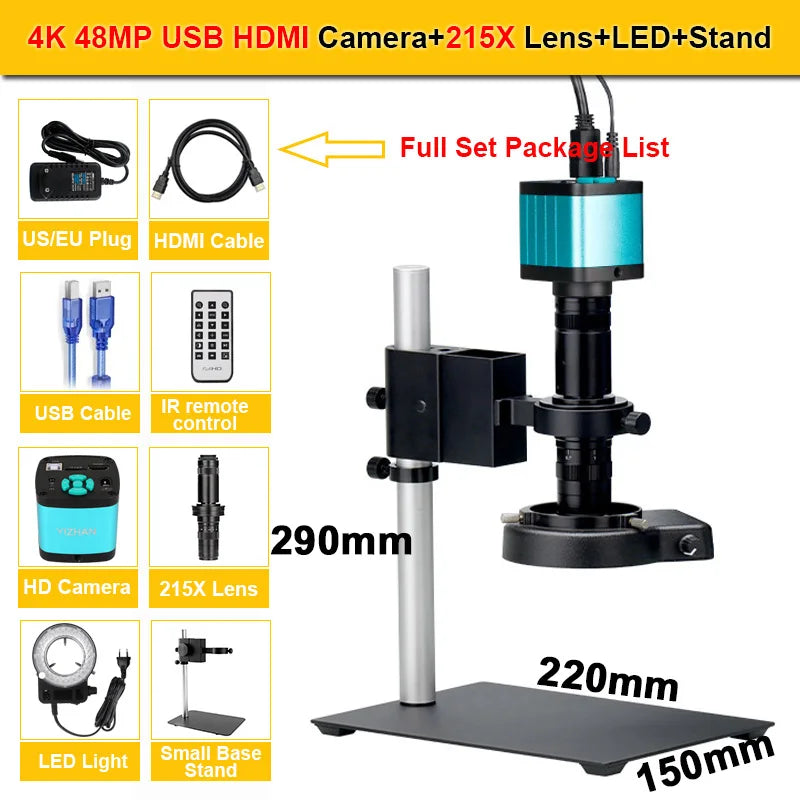

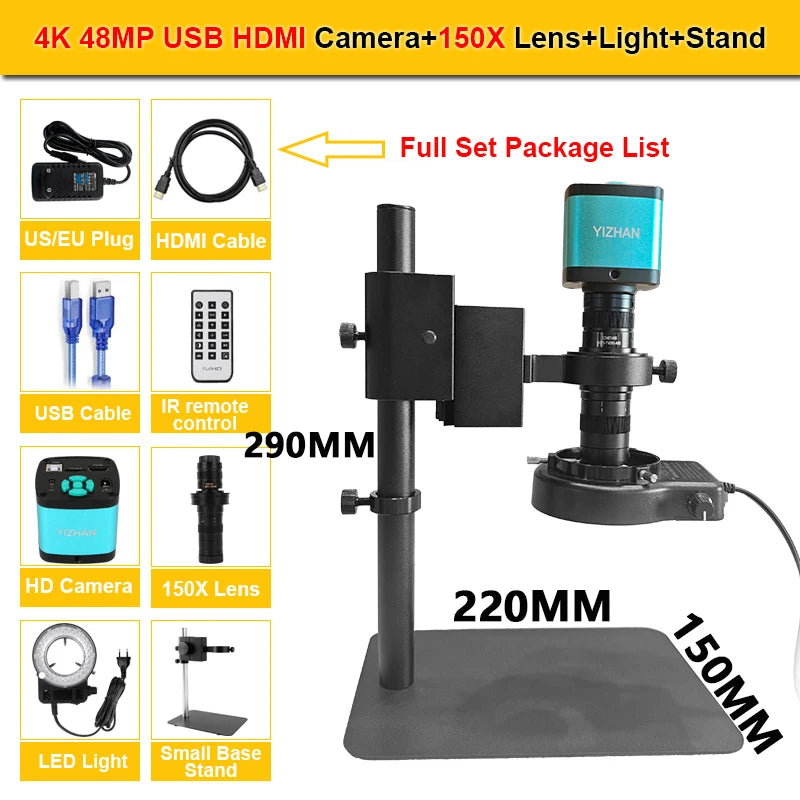

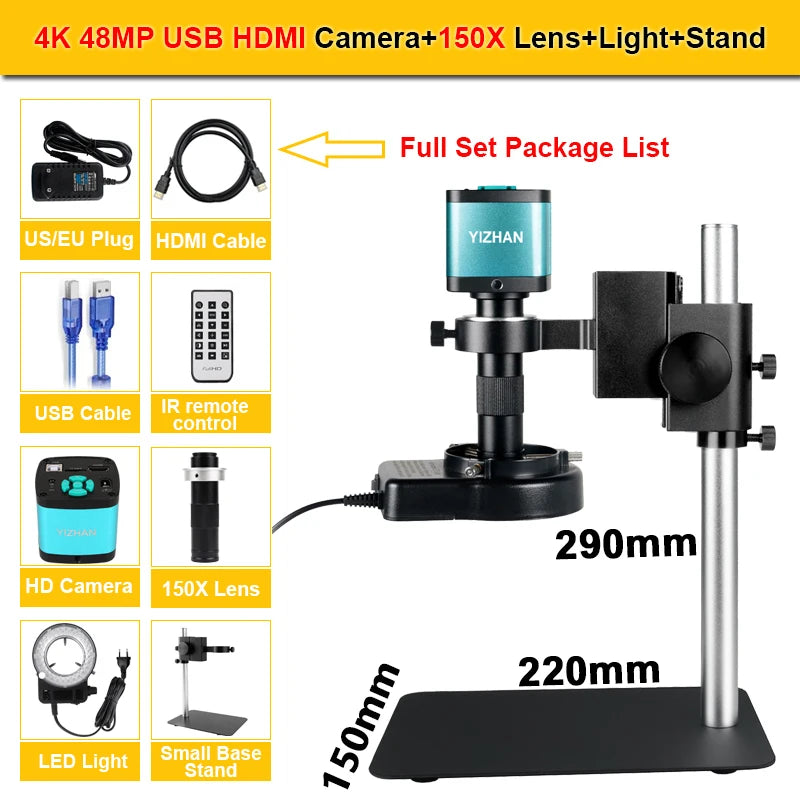

4K 48MP HDMI USB Camera package includes:
1*XHU4002 microscope camera
1*adapter
1*HDMI cable
1*USB communication interface cable
1*remote control
1*instruction manual
Note:
Camera Software Download URL:
https://drive.google.com/file/d/1uhIXHPESUhsn4dt3KSQ0sBGb4_ta6aWO/view?pli=1

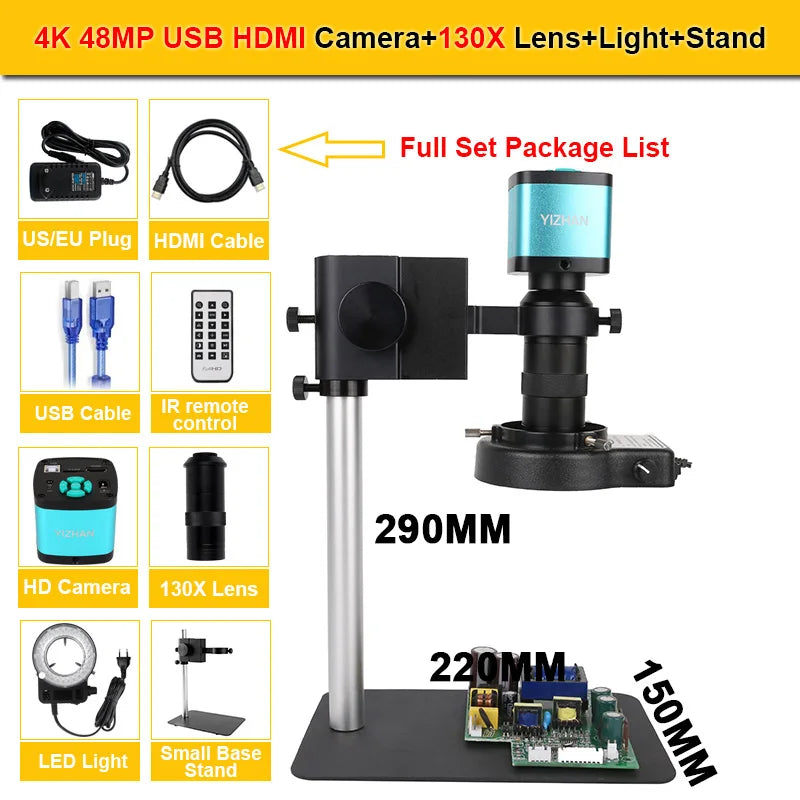

130X C-mount Zoon Lens Specifications:
Mounting diameter: 40mm
Working distance: 40mm-220mm
Zoom ratio: 1:17
Magnification: 0.1-1.3X (approximately 1-130X on the display)
Maximum magnification field of view: 8mm*4.5mm
Minimum magnification field of view: 40mm*33mm
Size: 115mm (length)*40mm (diameter)
Weight: 210g

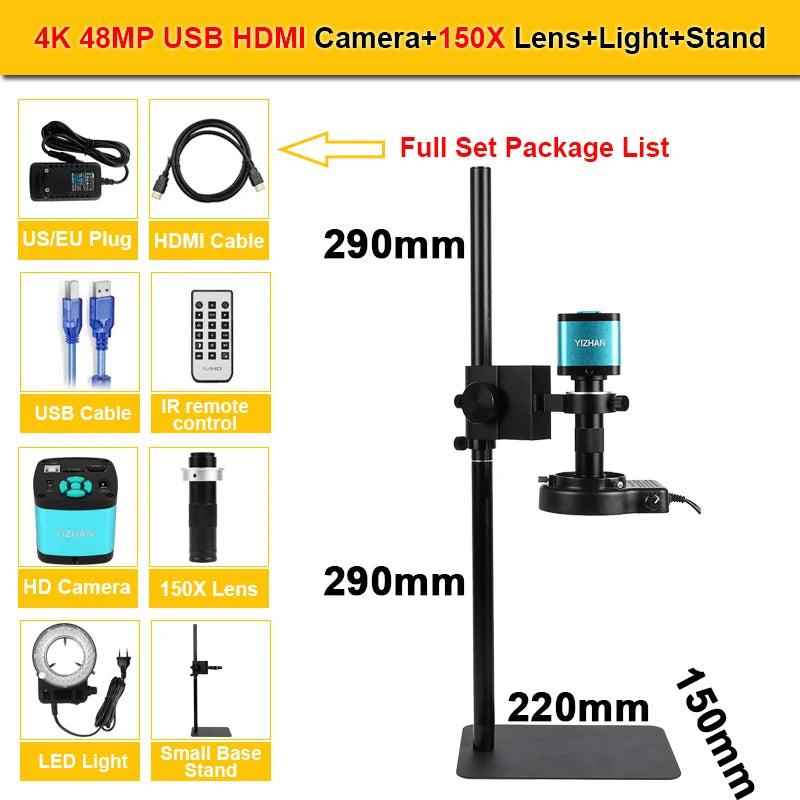

150X 40mm C-mount Zoon Lens Specifications:
Installation diameter: 40mm
Working distance: 50mm-1000mm
Zoom ratio: 1:15
Magnification 0.15-2X (approximately 1-150X on the display)
Maximum magnification field of view: 4.2mm*2.4mm
Minimum magnification field of view: 130mm*70mm
Size: 120mm (length)
Weight: 195g
Applicable camera size: 25mm
150X A50 C-mount Zoon Lens Specifications:
Installation diameter: 50mm
Working distance: 50mm-300mm
Magnification: 0.7X-4.5X
Objective magnification: 0.75X
Eyepiece magnification: 0.5X
Value range: 0.012-0.053
Diagonal field of view: 22.86-3.56
Matched camera size: 1/3 in
Size: 122mm*50mm
Weight: 310g

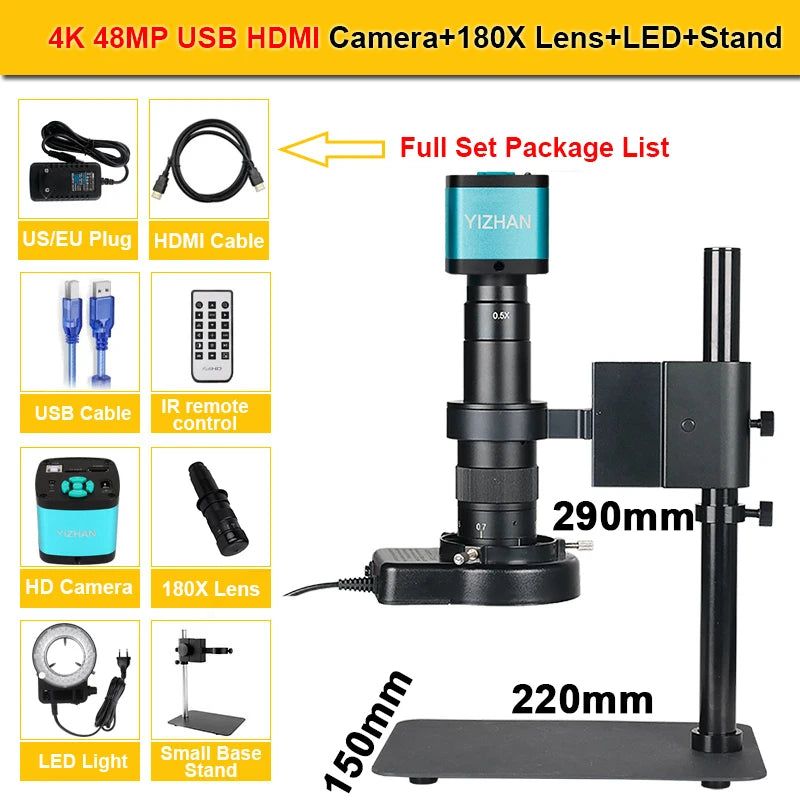

180X C-mount Zoon Lens Specifications:
Installation diameter: 50mm
Working distance: 100-150mm
Zoom ratio: 1:6.5
Magnification: 0.7-4.5X (approximately 1-180X on the display)
Maximum magnification field of view: 2.8mm*1.5mm
Minimum magnification field of view: 25mm*14mm
Eyepiece: 0.5X
Size: 168mm (length) * 50mm (diameter)
Weight: 570g

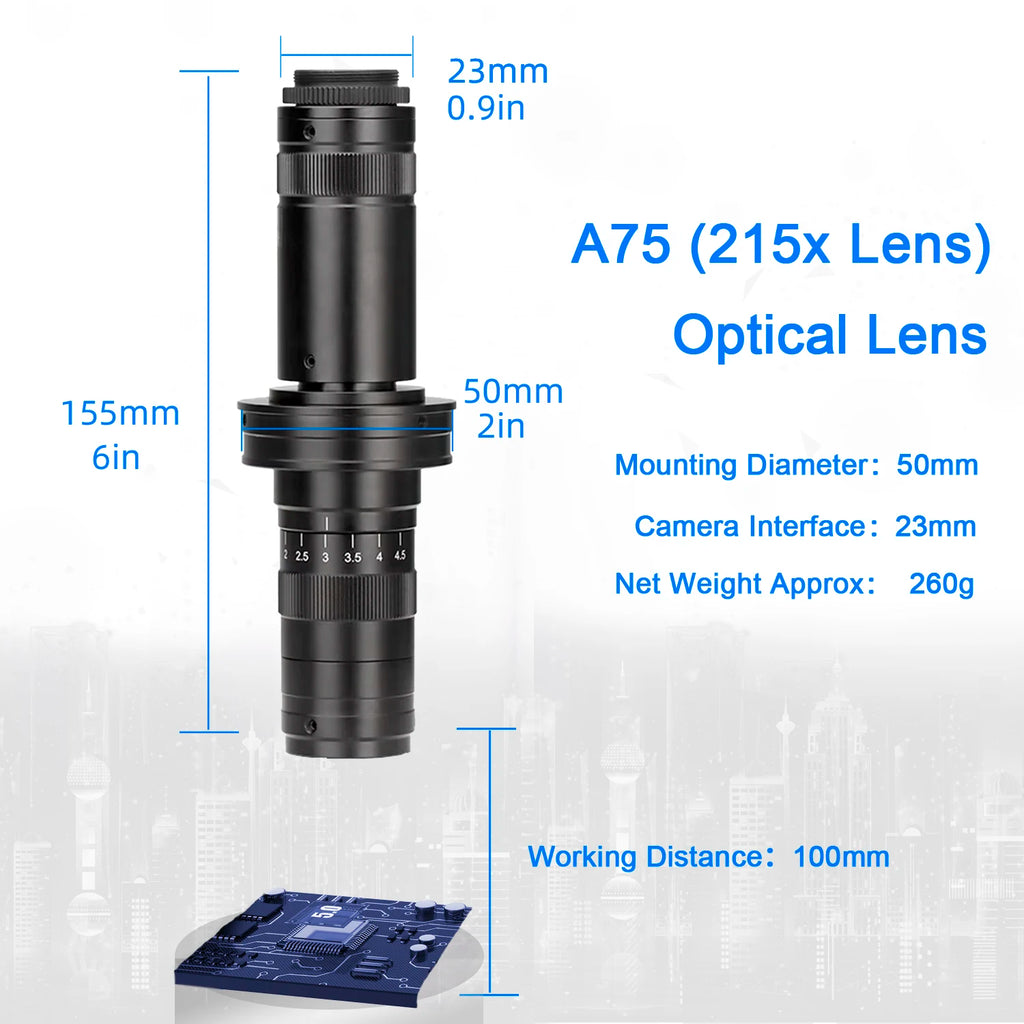

215X C-mount Zoon Lens Specifications:
Installation diameter: φ50mm
Lens diameter: φ25.5mm
Working distance: 100mm
Optical zoom: 0.7X-4.5x
Magnification: 35-215X
Zoom ratio: 1:6.5
Horizontal field of view: 2.67-22.85mm
Net weight: 260g

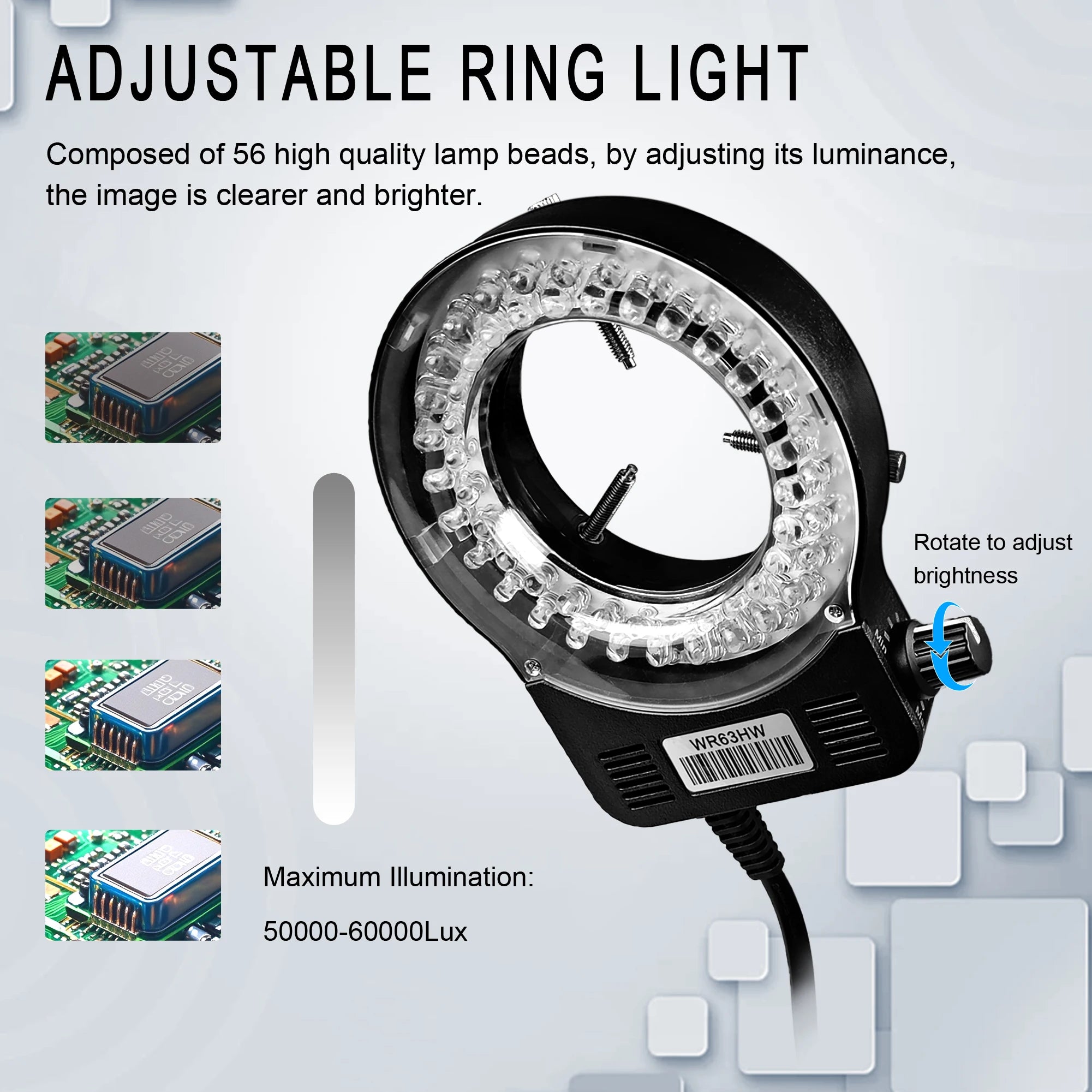

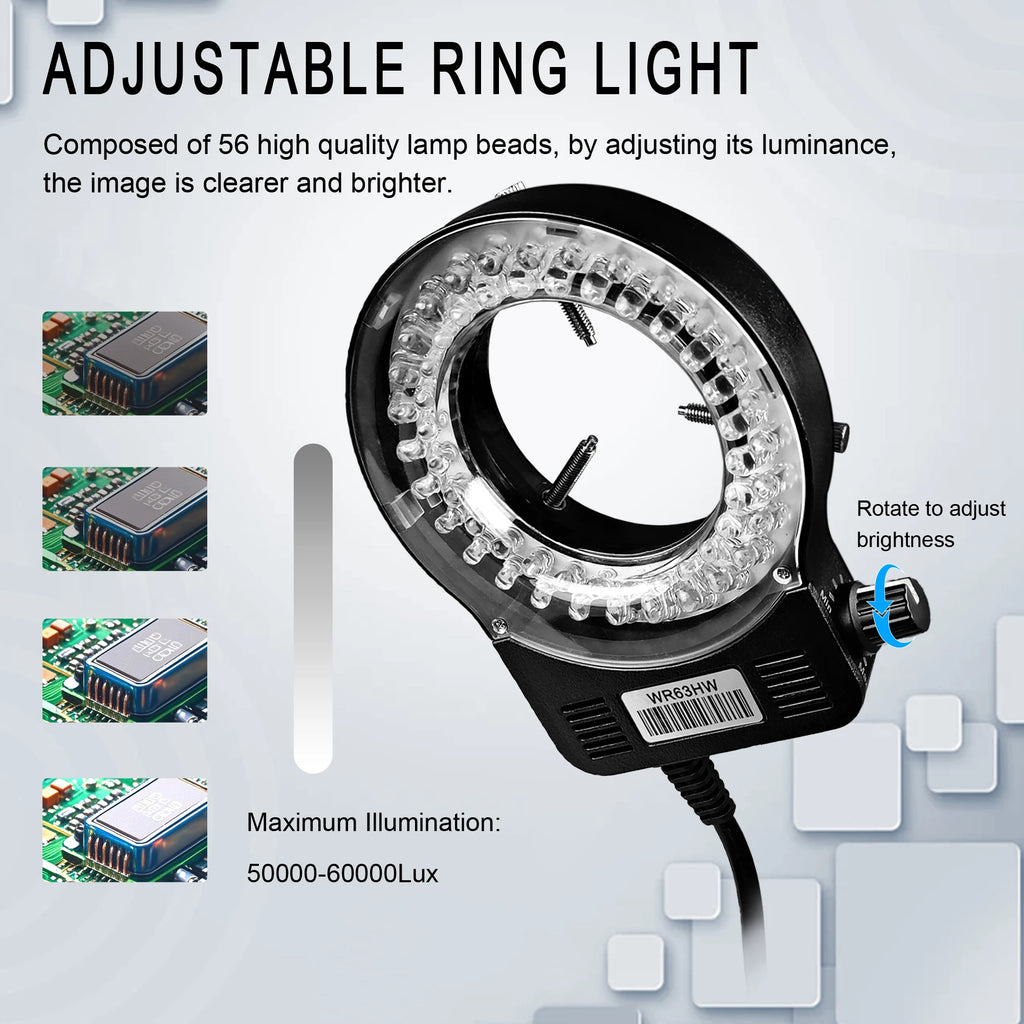

Ring Light Specifications:
Material: Plastic
Color: Black/White
Size: 100mm
Weight: 240g
Model: WR63HW
Power: 4.5W
Power input: 110V-220V
Output voltage: DC12V/1A
Number of LEDs: 56
Working life: 100,000 hours
Color temperature: 6500K
Effective distance: 50-300mm
Inner diameter: 63mm
Outer diameter: 97mm
Light color: White light

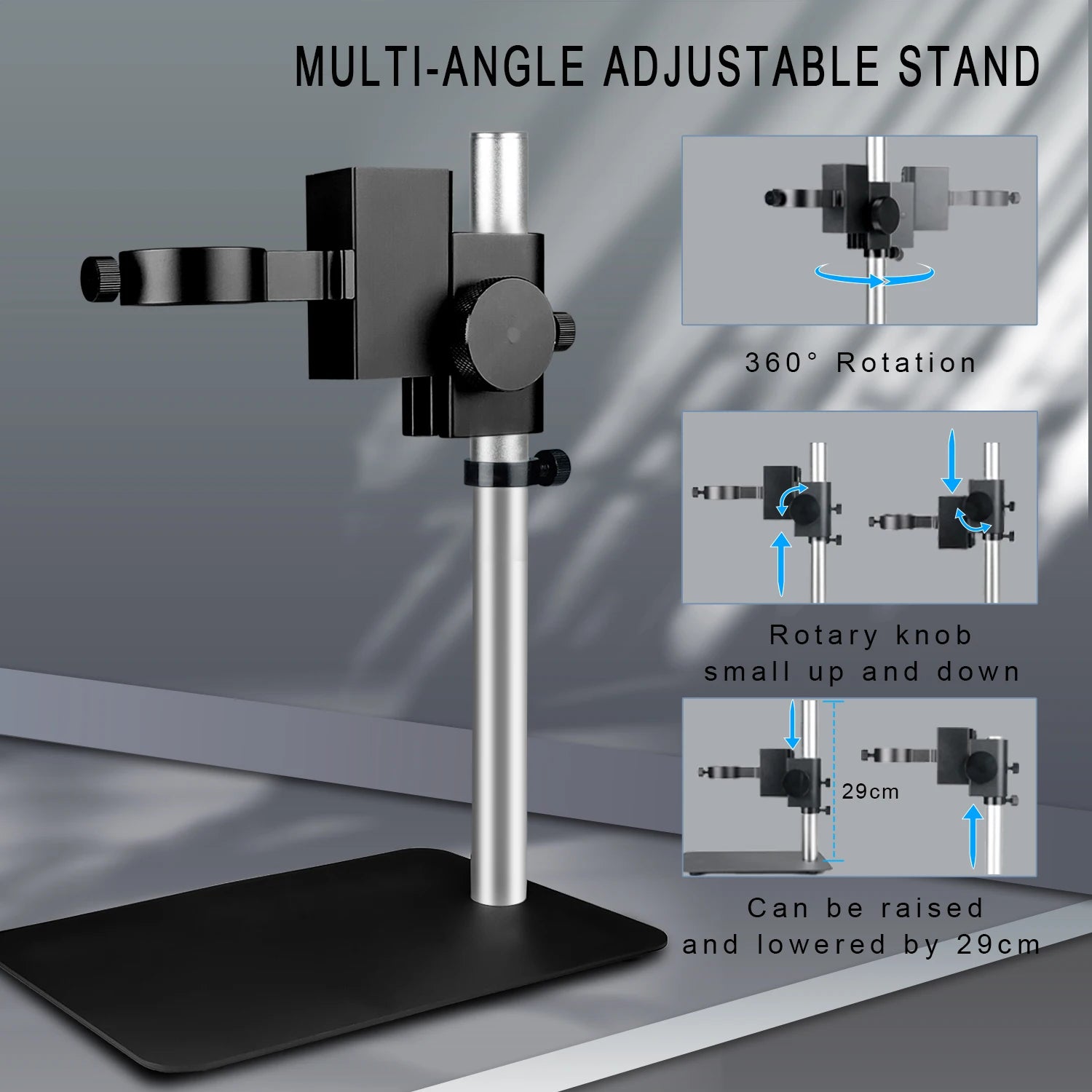

Small Base Specifications:
Features:
This microscope workstation can be adjusted up and down to meet your requirements
Can help the microscope rotate to any angle
The microscope lens can be fixed on this bracket
Product size: Assembly base size: 150mm*220mm
Main column height: 290mm
Lens installation inner diameter: 40mm/50mm
